2013 NIDEK Tonoref ll

Specifications

AR Measurable Range:

Sphere -30.00D to +25.00D (VD=12 mm) (0.01 / 0.12 / 0.25D increments)

Cylinder 0D to ±12D (0.01 / 0.12 / 0.25D increments)

Axis 0º to 180º (1º/ 5º increments)

Min. Pupil Diameter: ø 2 mm

AK Measurable Range:

Radius curvature 5.00 to 13.00 mm (0.01 mm increments)

Refractive power 25.96D to 67.50D (n=1.3375) (0.01 / 0.12 / 0.25D increments)

Astigmatism 0D to ±12.00D (0.01 / 0.12 / 0.25D increments)

Axis 0º to 180º (1º / 5º increments)

Measurement area: ø 3.3 mm (R=7.7 mm)

NCT:

Measurement Range: 1 mmHg to 60 mmHg

Range Setting: APC40, APC60 (APC=Automatic Puff Control), 40, 60

Working Distance: 11 mm

Fixation: Inner fixation light

PD Range: 30 mm to 85 mm (indication increments: 1 mm)

Corneal Size: 10.0 mm to 14.0 mm (indication increments: 0.1 mm)

Pupil Size: 1.0 mm to 10.0 mm (indication increments: 0.1 mm)

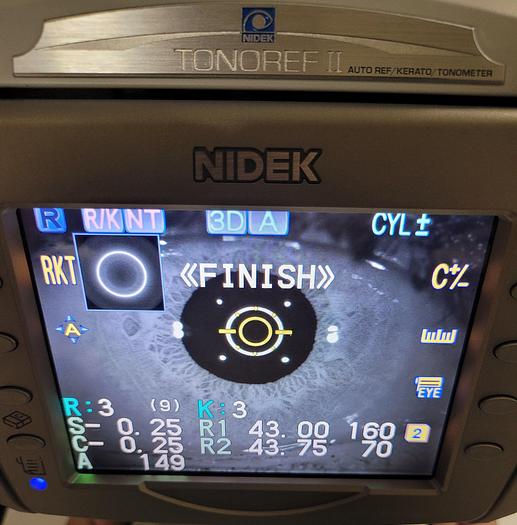

Display: 5.7″ VGA color LCD tiltable

Printer: Thermal line printer with automatic paper cutter

Interface: RS-232C (IN / OUT), USB

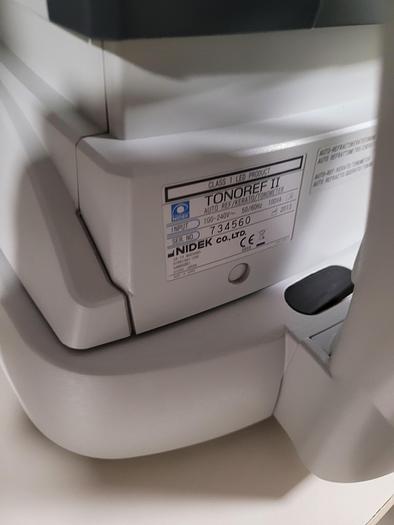

Power Supply: AC100 – 240 V ±10 %, 50 / 60 Hz, 100 VA
