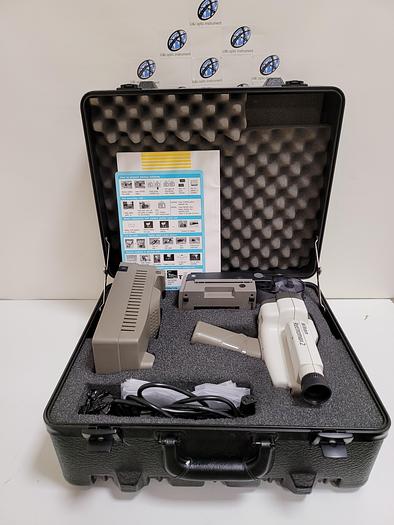

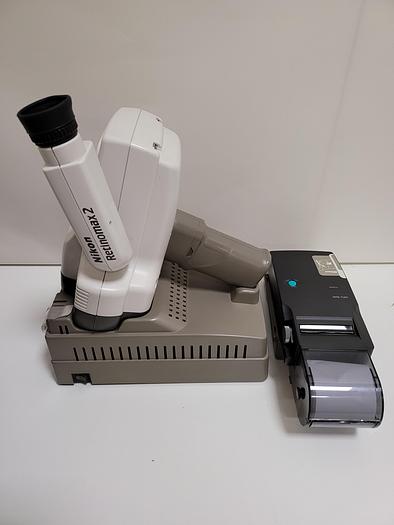

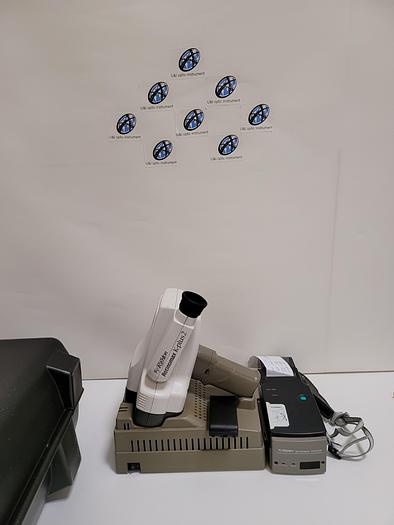

Nikon K-Plus 2 Retinomax Autorefractor

Nikon K-Plus 2 Retinomax Autorefractor

€4,900 (EUR)

Vianen, Netherlands

orCall +31(0) 640821781


Features :

  • Wireless
  • Auto-charging
  • Full measurement range and advanced measurement modes
  • Begins readings the instant that alignment and focus is achieved and terminated automatically when complete
  • Faster measurement times with increased accuracy.
  • Retroillumination function highlights media opacities.
  • Elimination of the chinrest makes the examination procedure easier and more relaxed for children

Specifications :


Measurement Range: S -18D to +23D, C 0 to – 12D, 0 to +12D, Axis: 1° to 180°

Increments: Auto/0.25D selectable, Axis: 1°


Measurement Range: Radius curvature: 5 to 11mm (in 0.01mm increments), Corneal astigmatism: in 0.25D increments, Axis: 1° to 180° (in 1° increments)

Measurement Area: Center: Ø3.2mm (R8mm), Peripheral: 25° tangential (vertical/horizontal)


Measurement Area: 2.5mm

Measurement Modes: Auto/Continuous/Quick R-K Mode RK/R/K

Measurement Time: RK: 0.25 sec. per indication, R: 0.12 sec. per indication (0.07 sec. in quick mode)

Mire Ring: 18 points dots: 30mm diameter

Consistency Value: 10 points

Pupil Observation: Retro Mode

Reaching Distance: 10.9 inch. (278mm)

Working Distance: 2 inch. (50mm) from cover glass

Dimensions (measuring head): 6.4 x 8.9 x 9.3 inch. (163 x 226 x 236mm)

Weight: 36oz (1,020g) (battery +6.4oz /180g)


ModelK-Plus 2 Retinomax Autorefractor
Stock Number1703265
