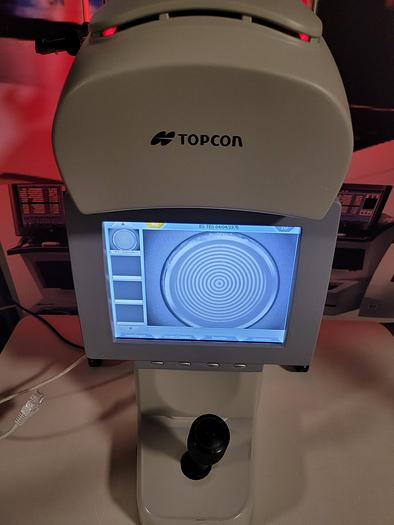

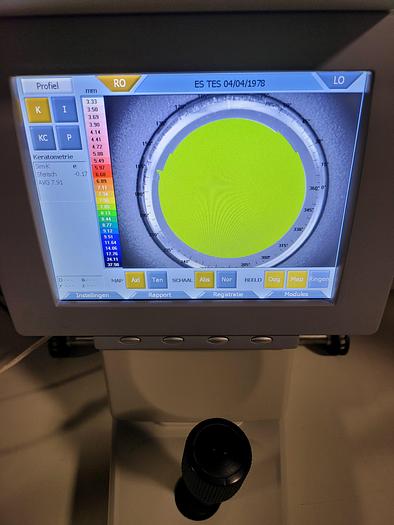

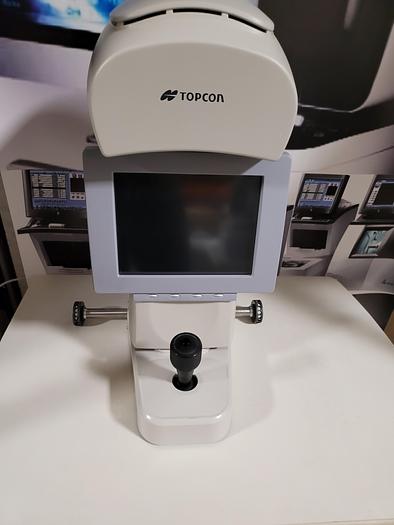

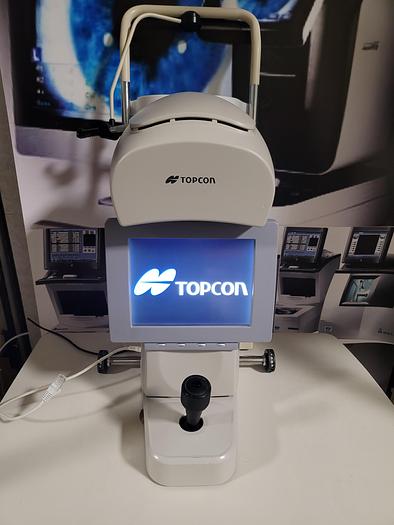

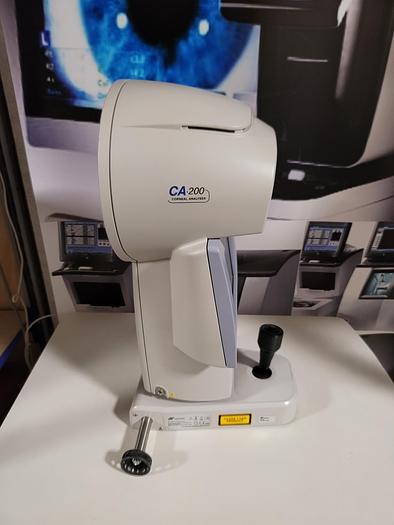

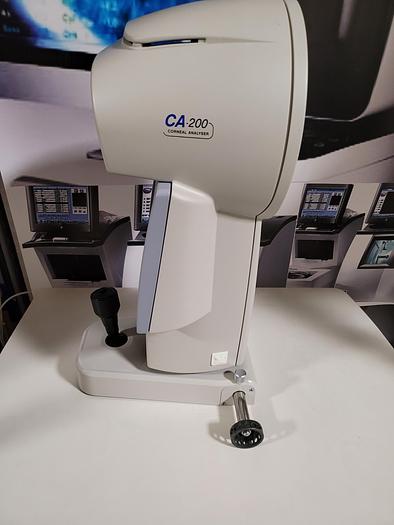

TOPCON CA-200

With pc and software

» Technical Specifications

Keratoscope cone 24 rings equally spaced on a 43D sphere

Analyzed points Over 100,000

Measured points Over 10,000

Corneal coverage From 0.3 (minimal diameter on a sphere of 43D) up to 10.5mm

on a normal eye

Diopter power range From 1D to over 120D

Resolution +/- 0.01D, 1 micron

Accuracy/Precision Axial radius ±0.03mm altimetric data ± 2µm at 4mm

Capture system Auto-capture

Output port USB

» Environmental Conditions:

Working Environment:

Temperature 10-40°C

Relative humidity 30-75% (no dewing)

Atmospheric pressure 700-1060 hPa

Storage:

Temperature 10-40°C

Relative humidity 30-75% (no dewing)

Atmospheric pressure 700-1060 hPa

» Electric Specifications:

Power supply AC 100-240V 47-63 Hz

Power consumption <100 VA
