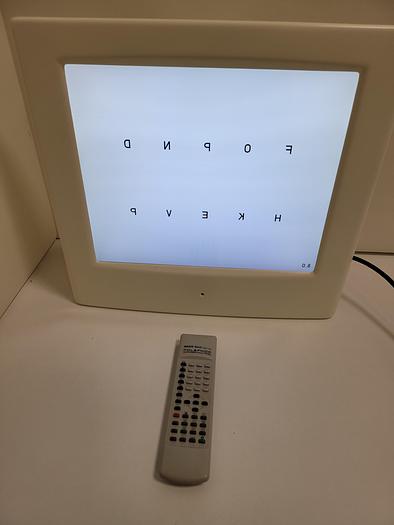

Block Polaphor chart LCD

• multi language menu

• silent operation and fast change of the displayed charts

• additional tests possible

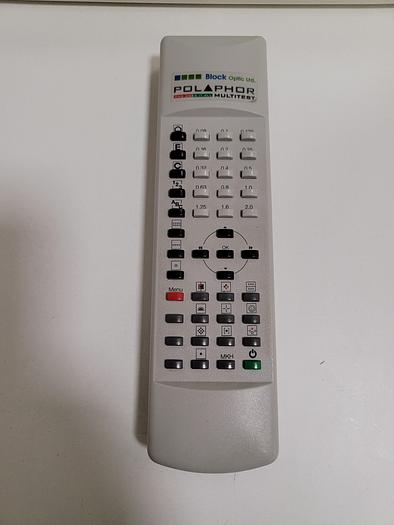

• control via the operator panel and the ↓ App „PhorControl”

• polarization direction: linear 45 ° / 135 ° or circular

• red/green-adjustment

• display of Landolt rings accordant EN ISO 8596 and DIN 58220-3

• 2 programmable sequences of optotypes possible

• single, row and group display

• randomize function

• testing distance: 3 – 7 m, in 10 cm grading adjustable

• acuity steps: 0,05 – 2,0 (logarithmic)

• viewing area: ca. 531×298 mm

• main voltage: 230 V / 50 Hz

• dimensions incl. wall mounting: ca. 642 x 440 x 235 mm

• weight: ca. 14 kg

• 24″ display with full HD resolution (1920 x 1080 Pixel) in 16:9 format

• LED backlight for better illumination in short use unlike the CCFL tubes

• less fusion incentives thanks to the larger screen and relocation of the IR receiver on the backside

• Multiple free key assignment

• Software updates even easier

• Mirror reading

• Many options available

• Incl. tablet to operate the device with
