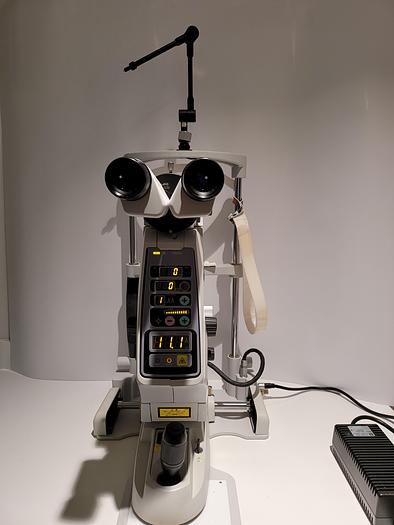

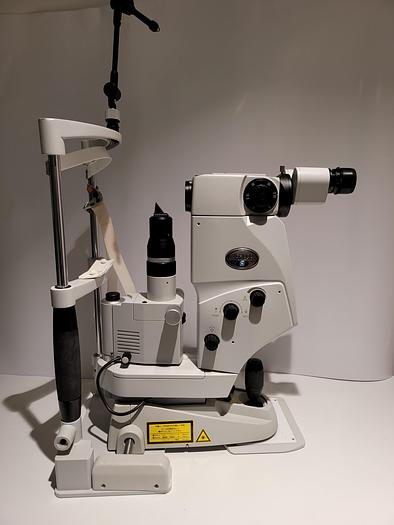

NIDEK Yag laser YC-1800

DESCRIPTION

YC-1800 Laser

The NIDEK YC-1800 is an advanced ophthalmic laser platform, combining innovative laser delivery, improved operability, faster operation, versatility for combination.

• High operability with S-switch on joystick - The S-switch on the joystick provides changes to treatment settings while maintaining alignment on the region being treated
• Reliable laser output with unique D-pulse control - The YC-1800 employs D-pulse, the advanced technology to control the pulse number under the CPU, providing stable laser output without being affected by environmental conditions and change over time
• Dual rotatable aiming beam for accurate alignment - The dual 635 nm aiming beam offers superior targeting, which in turn enhances the speed and ease of surgery
• Wide range of focus shift - Focus shift enables focal point of YAG laser beam to shift within 500 µm in an anteroposterior direction from focal point of aiming beam

SPECIFICATIONS

Wavelength1064 nmLaser TypeNd:YagWeight16 kg

Additional Specifications

Output Power: 0.3 - 10 mH

Burst Mode: 2 or 3 pulses per trip

Target Laser: Two-beam system

Focus: Max. ± 500 Μm in 25 Μm steps

Power Consumption: 100 VA / 230 V AC
