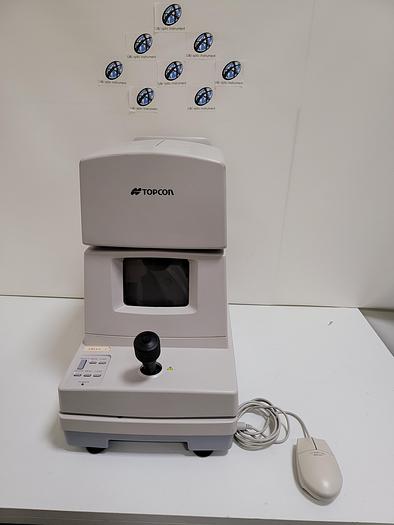

TOPCON Specular microscope.

No longer available

TOPCON Specular microscope.

Vianen, Netherlands

Description

 Dual Measurement System

*Corneal Endothelium Measurement

*Corneal Thickness MeasurementAlignment System

This innovative auto alignment and auto capture system ensures ease of operation and reliable results.Built-In Fixation Targets

Corneal thickness and endothelium images can obtained of the central and four peripheral areas.

Peripheral fixation is established at the 12,2,6 and 10 o'clock positions.

Different colored LED's aid in patient compliance.Non-Contact

The SP-2000P captures the image of the endothelium cells and calculates cornea thickness by a unique method that does not require touching the cornea. This patented procedure eliminates the risk of transmitting infectious disease and reduces potential physical injury to the eye. Patient comfort is increased. Because of greater patient cooperation, the examination time is greatly reduced.

Due to the non-contact operation, image acquisition can be obtained through contact lenses which allows the cell condition to be observed while fitting contacts.

<Specifications>

Light SourceFor observation :Near infrared LightFor photography :Max. 60W sec. Xenon Flash;

Low & High adjustmentsPhotographic Area0.2 × 0.5mmWorking Distance25mmFixation TargetsInternal· Central · Peripheral : 12, 2, 6 & 10 o'clock positionsScreen5" monochromeCell Counting Grid1000 / 1500 / 2000 / 2500 / 3000 cell/mmImage Memory3 images for each eye (Total 6 Images)Automatic Shut-offStandardPower VoltageAC100, 120, 220, 240V 50 / 60 HzPower Consumption110VABase Travel40mm (back & forth), 88mm (right& left)Head Travel10mm (back & forth), 10mm (right& left)

30 mm (motorized vertical movement)Chinrest Vertical Travel60mmDimensions274(W) × 485(D) × 410(H)mmWeight20kg

Specifications

ManufacturerTOPCON
ModelSpecular microscope.
ConditionUsed
Stock Number1703307
